PB50.3
Princeton PIGGY BACK®Perhaps the biggest news with the new PB50.3 is the all new, technologically advanced, Tier 4 Final compliant engine.
- Applications:

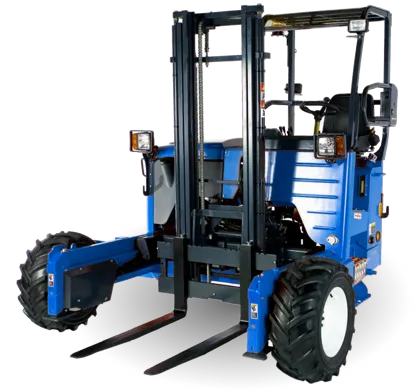

The all-new Princeton PB50.3 Forklift is our medium-duty machine that offers 5000 lbs of lifting capacity in a compact, yet powerful package. Customers delivering lighter building materials, roofing, insulation, tile and agricultural products will find this new forklift to be everything they need and more. The PB50.3 forklift has excellent stability. While weighing in at only about 5,000lbs, the machine feels sure footed and rugged. Engineers designed the machine to have excellent ground clearance AND a low center of gravity. Even more impressive, the machine was designed to have a shorter overall length. The PB50.3 can be configured to a 56” overhang which allows for mounting to even 48 foot-long trailers.
EPA Tier 4 Compliant Engine
Perhaps the biggest news with the new PB50.3 is the all new, technologically advanced, Tier 4 Final compliant engine. Offering higher horsepower, higher torque, improved fuel consumption, and greater service intervals; the new power plant is the greatest leap forward in technology on this new truck-mounted forklift.
Technical Specifications
download spec pdf| Model: | PB50.3 | |
| Type: | Standard | |
| Capacity @ 24” Load Center: | 5000 lbs | |
| diesel engine: | 48 HP | |
| Engine Emission Compliance: | EPA Tier4 Final | |
| Maximum RPM: | 2700 RPM | |
| Electrical System: | 12 Volt | |
| Drive Wheels: | 3 | |
| Steering: | Hydrostatic | |

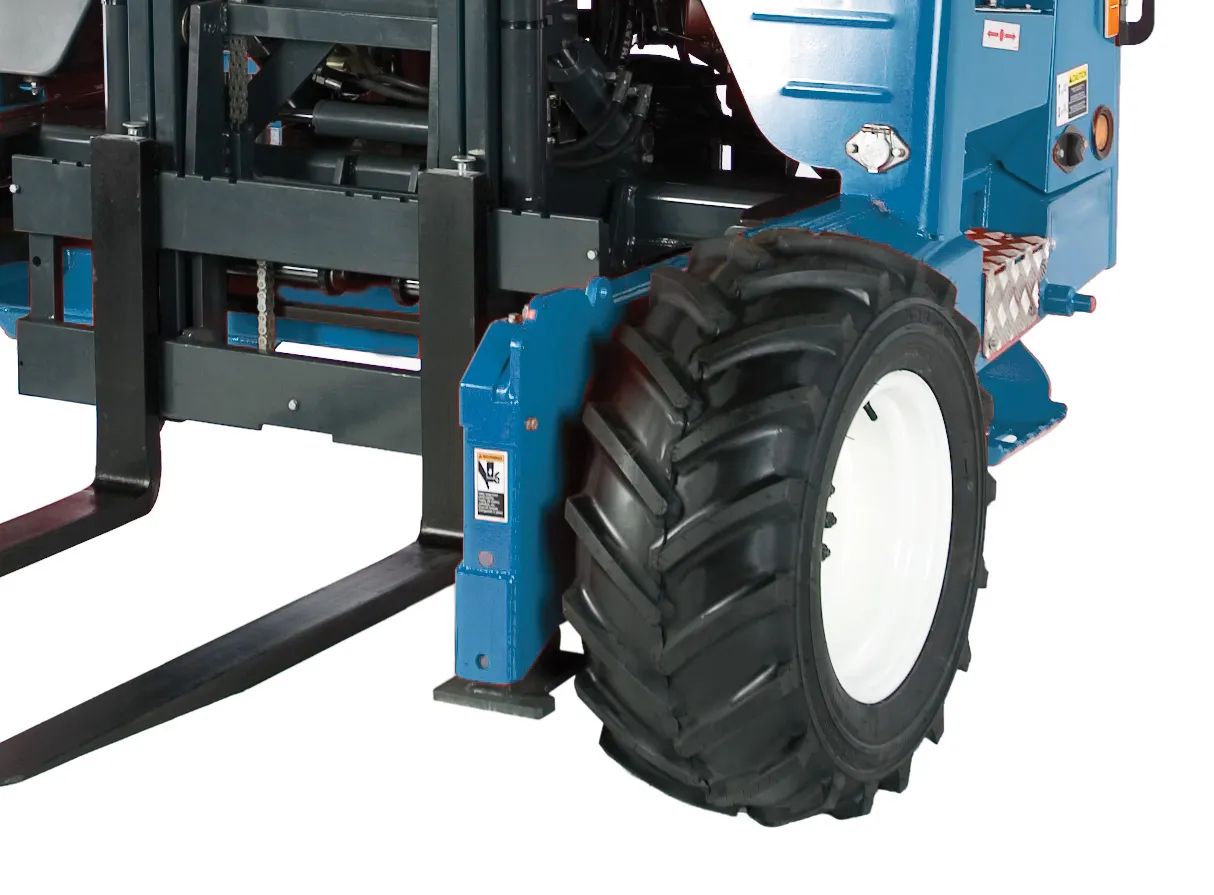

| Tire Type: | 29 x 12.5 - 15 8-Ply (TG) | |
| Tire Outside Diameter (Front/Rear): | 29" / 29" | |
| Tire Width (Front/Rear): | 12.5" / 21.5" | |
| Maximum Speed: | 7 mph | |
| Maximum Gradability: | 30% | |
| Turning Radius: | 81" | |
| Unladen Weight: | 5150 lbs | |
| Unladen Weight (Optional): | 5290 lbs | |
| Working Pressure (Attachments): | 2500 psi | |
| Tilt of Mast (Forward/Backward): | 7° / 6° | |
| Sideshift: | 5" | |
| Fork Section: | 45 x 4 x 1.75" | |
| Mast Carriage travel: | 35.5" | |
| Height To Top Of Canopy: | 97" | |
| Fork Carriage Width (Class): | 47.25" (II) | |
| Frame Opening: | 60.5" | |
| Overall Width: | 100" | |
| Overhang: | 56" | |
| Wheelbase: | 68" | |
| Center of Gravity (From Fork Face): | 15.5" | |
| Lift Height: | 120" / 144" | |
| Mast Height - Collapsed: | 97" / 109" | |
| Mast Height - Raised: | 156.5" / 181.5" | |
| Ground Clearance: | 9.5" | |
| Face of Fork to Center of Front Tire: | 20" | |
| ANSI Standard: | B56.6 |
