PB50.4

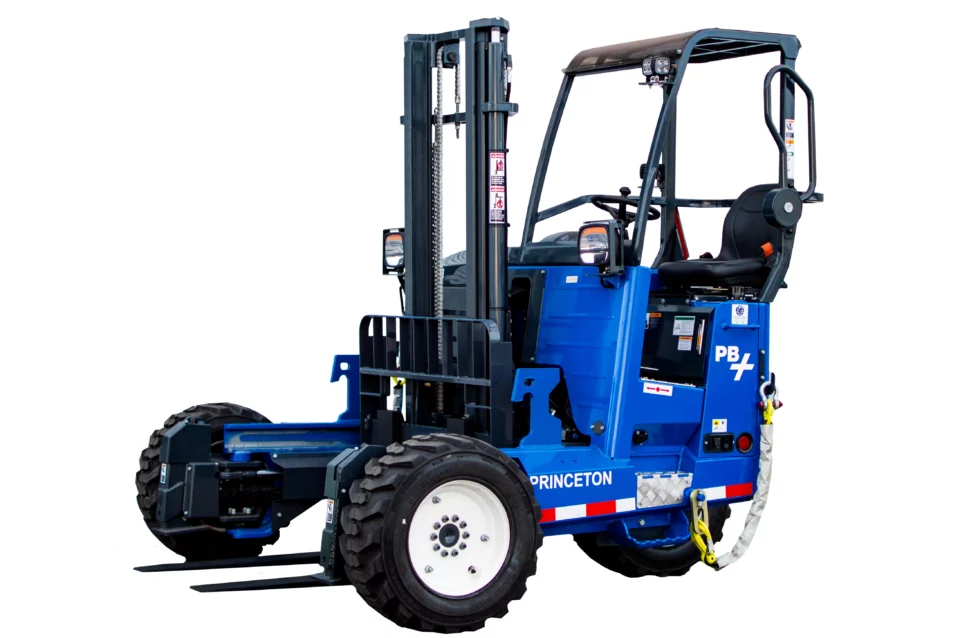

Princeton PIGGY BACK®Combining 4-Way functionality with our medium duty PB50 platform, the PiggyBack® PB50.4 offers versatility in a more compact package.
- Applications:
Princeton’s new PB50.4 Forklift adds 4-way functionality to our medium-duty machine and offers 5000 lbs of lifting capacity in a compact, yet powerful package. With the flip-of-a-switch the PB50.4 converts into side-directional mode permitting the unit to be driven sideways to maneuver through restricted areas. Customers delivering lighter building materials, roofing, insulation, tile and agricultural products will find this new forklift to be everything they need and more. The PB50.4 forklift has excellent stability. While weighing in at only about 5,000lbs, the machine feels sure footed and rugged. Engineers designed the machine to have excellent ground clearance AND a low center of gravity. Even more impressive, the machine was designed to have a shorter overall length. The PB50.4 can be configured to a 56” overhang which allows for mounting to even 48 foot-long trailers.
Technical Specifications
download spec pdf| Model: | PB50.4 | |
| Type: | 4-Way | |
| Capacity @ 24” Load Center: | 5000 lbs | |
| diesel engine: | 48 HP | |
| Engine Emission Compliance: | EPA Tier 4 Final | |
| Maximum RPM: | 2750 RPM | |
| Electrical System: | 12 Volt | |
| Drive Wheels: | 3 | |
| Steering: | Hydrostatic | |
| Tire Type: | 31.5 x 13 - 16.5 (SS) 31 x 15.5 - 15 (TG) | |
| Tire Outside Diameter (Front/Rear): | 31.5" / 31" | |
| Tire Width (Front/Rear): | 13" / 15.5" | |
| Maximum Speed: | 7 mph | |
| Maximum Gradability: | 30% (15%) | |
| Turning Radius: | 77" | |
| Unladen Weight: | 5880 lbs | |
| Unladen Weight (Optional): | 6010 lbs | |
| Working Pressure (Attachments): | 2500 psi | |
| Tilt of Mast (Forward/Backward): | 7° / 6° | |
| Sideshift: | 5" | |
| Fork Section: | 48 x 6 x 2 | |
| Mast Carriage Travel (Reach): | 31" | |
| Height to Top of Overhead Guard: | 98" | |
| Fork Carriage Width (Class): | 47.25" (II) | |
| Frame Opening: | 56.5" | |
| Overall Width (4-way mode): | 99.5" (108.5") | |
| Overhang: | 56" | |
| Wheelbase: | 68" | |
| Center of Gravity (From Fork Face): | 15" | |
| Lift Height: | 120" / 144" | |
| Mast Height - Collapsed: | 98" / 110" | |
| Mast Height - Raised: | 157.5" / 182.5" | |
| Ground Clearance: | 10.5" | |
| Face of Fork to Center of Front Tire: | 20.5" | |
| ANSI Standard: | B56.14 |
