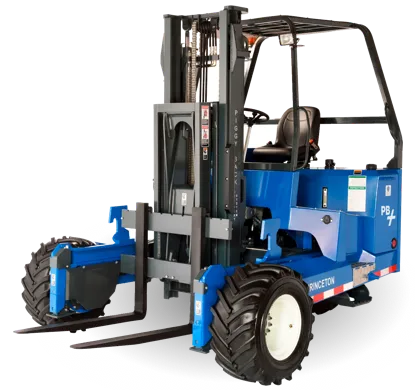

PB55.3X
Princeton PIGGY BACK®The advantages really add up with the PiggyBack PB55.3X.
The 5,500 lb. capacity PB55.3X is the first unit in the industry equipped with a standard “Double Reach” feature. This unique feature, which adds an extending scissors reach system to the standard moving mast, doubles the length of the reach of the PB55.3X+ across the bed. With the PB55.3X+, your driver now can unload an entire truck or trailer from one side, even from positions where tanks or tandems are located.
The new PB series machines have been redesigned with new features on the inside and out to increase performance, safety, options, and simplify maintenance. The advantages really add up with the PiggyBack PB55.3X.
Technical Specifications
download spec pdf| Model: | PB55.3X | |
| Type: | Pantograph | |
| Capacity @ 24” Load Center: | 5500 lbs | |

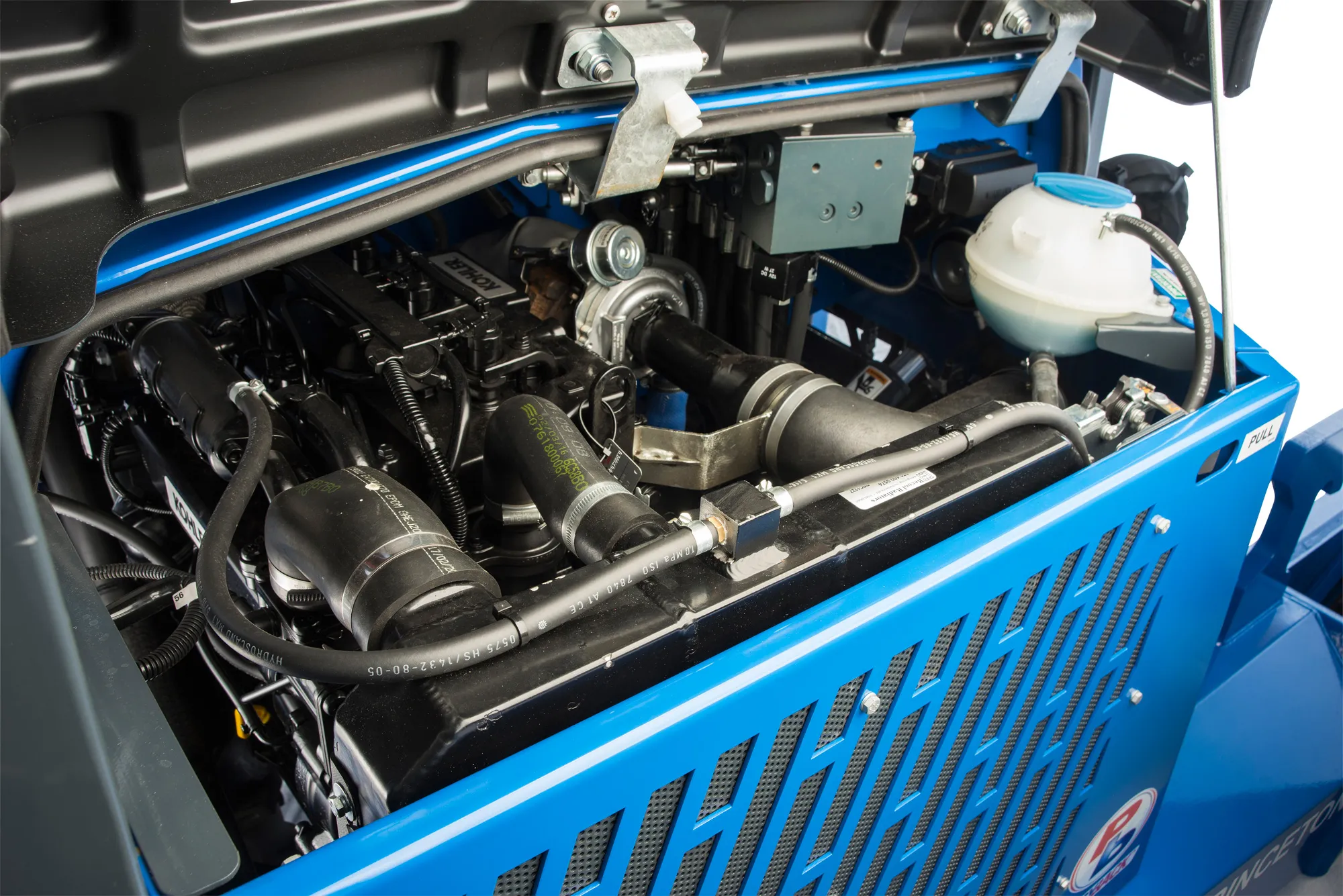

| diesel engine: | 56 HP | |
| Engine Emission Compliance: | EPA Tier4 Final | |
| Maximum RPM: | 2700 RPM | |
| Electrical System: | 12 Volt | |
| Drive Wheels: | 3 | |
| Steering: | Hydrostatic | |
| Tire Type: | 31 x 15.5 - 15 8 12-Ply (TG) 31 x 15.5 - 15 8-Ply (TG) | |
| Tire Outside Diameter (Front/Rear): | 31" / 31" | |
| Tire Width (Front/Rear): | 15.5" / 15.5" | |
| Maximum Speed: | 7 mph | |
| Maximum Gradability: | 30% | |
| Turning Radius: | 91" | |
| Unladen Weight: | 7190 lbs | |
| Unladen Weight (Optional): | 7240 lbs | |
| Working Pressure (Attachments): | 2500 psi | |
| Tilt of Mast (Forward/Backward): | 10° / 8° | |
| Sideshift: | 5" | |
| Fork Section: | 45 x 4 x 2" | |
| Mast Carriage Travel (Reach): | 27" (48") | |
| Height To Top Of Canopy: | 101" | |
| Fork Carriage Width (Class): | 48.25" (III) | |
| Frame Opening: | 57.75" | |
| Overall Width (4-way mode): | 101" | |
| Overhang: | 86" | |
| Wheelbase: | 83.5" | |
| Center of Gravity (From Fork Face): | 30" | |
| Lift Height: | 120" / 144" | |
| Mast Height - Collapsed: | 97.25" / 109.25" | |
| Mast Height - Raised: | 185" / 211" | |
| Ground Clearance: | 11" | |
| Face of Fork to Center of Front Tire: | 9" | |
| ANSI Standard: | B56.14 |
